MIL-PRF-19500-463 Semiconductor Device, Diode, Silicon, Current Regulator, Types 1N5283-1 Through 1N5314-1, And 1N5283Ur-1 Through 1N5314Ur-1, 1N7048-1 Through 1N7055 1, 1N7048Ur-1 Through 1N7055Ur-1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for 100 volt, silicon, current regulator diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/463K
Dimensions
Inches
Millimeters
Symbol
Min
Max
Min
Max
A
.012
.014
0.305  0.355
B
.026
.030
0.660  0.762
Design data
Metallization:
Top: (Anode) ......... Al
Back: (Cathode) .... Au
Al thickness ............ 25000 Å Min
Gold thickness ........ 4000 Å Min
Chip thickness ....... .010 ±.002 inch (0.254 ±0.0508 mm)
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

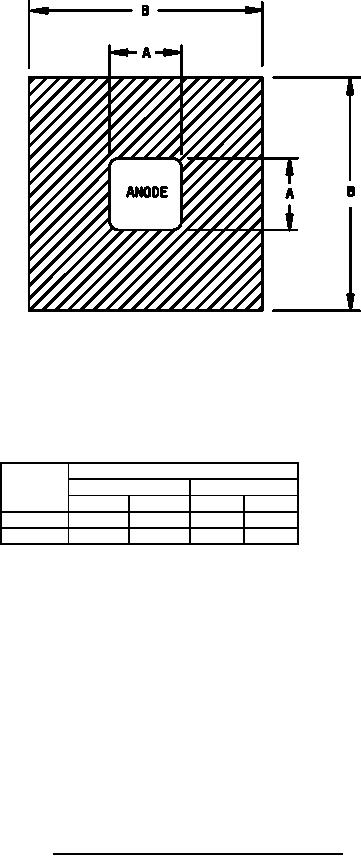

FIGURE 3. Physical dimensions, JANHCA and JANKCA die.
