MIL-PRF-19500-463 Semiconductor Device, Diode, Silicon, Current Regulator, Types 1N5283-1 Through 1N5314-1, And 1N5283Ur-1 Through 1N5314Ur-1, 1N7048-1 Through 1N7055 1, 1N7048Ur-1 Through 1N7055Ur-1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for 100 volt, silicon, current regulator diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/463K
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.006
.007
0.152
0.178
B
.022
.026
0.559
0.660
Design data
Metallization:
Top: (Anode) ......... Al
Back: (Cathode) .... Au
Al thickness ............ 25000 Å Min
Gold thickness ........ 4000 Å Min
Chip thickness ....... .010 ±.002 inch (0.254 ±0.0508 mm)
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

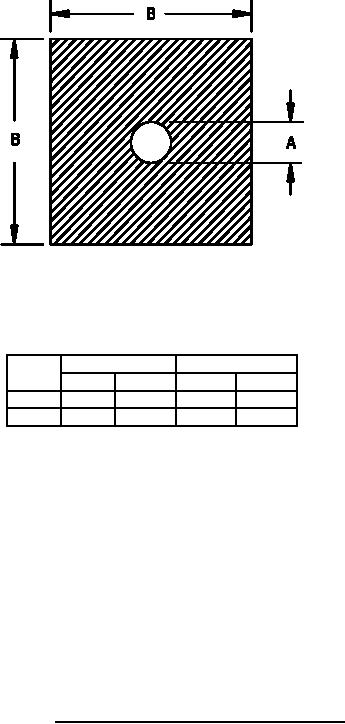

* FIGURE 4. Physical dimensions, JANHCB and JANKCB die.
5
