MIL-PRF-19500/495G
Dimensions
Inches
Millimeters
Symbol
Min
Max
Min
Max
Note
CD
.305
.335
7.75
8.51
CH
.150
.185
3.81
4.70
HD
.335
.370
8.51
9.40
LD
.016
.021
0.41
0.53
LL
.500
12.70
LC
.200 BSC
5.08 BSC
4
LC1
.100 BSC
2.54 BSC
LC2
.100 BSC
2.54 BSC
TL
.029
.045
0.74
1.14
3
TW
.028
.034
0.71
0.86
6
α
45° TP
45° TP
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Measured from maximum diameter of the product.
4. Leads having maximum diameter .019 inch (.483 mm) measured in gaging plan .054 inch (1.37 mm)
+ .001 inch (.025 mm) - .000 inch (.000 mm) below the seating plane of the product shall be within .007 inch
(.178 mm) of their true position relative to a maximum width tab.
5. The product may be measured by direct methods or by gauge.
6. Tab centerline.
7. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

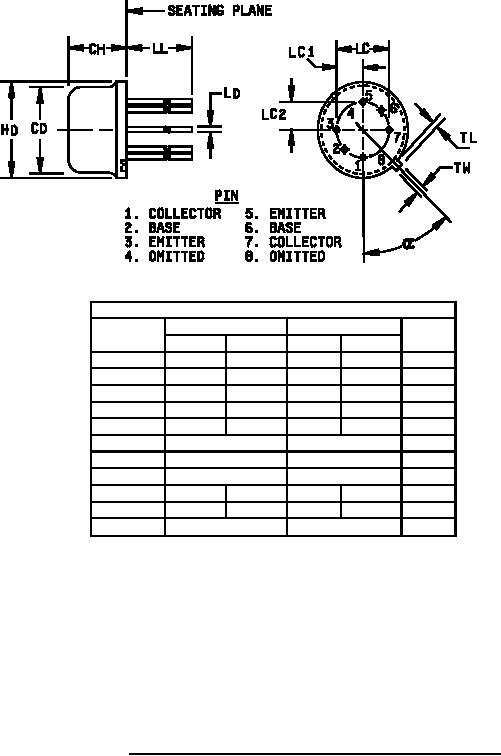

FIGURE 1. Physical dimensions (2N5793 and 2N5794) (similiar to TO-99).
3
