MIL-PRF-19500/495G
Dimensions
Dimensions
Symbol
Inches
Millimeters
Symbol
Inches
Millimeters
Min
Max
Min
Max
Min
Max
Min
Max
BL
.240
.250
6.10
6.35
LL1
.060
.070
1.52
1.78
BL2
.250
6.35
LL2
.082
.098
2.08
2.49
BW
.165
.175
4.19
4.45
LS1
.095
.105
2.41
2.67
BW2
.175
4.45
LS2
.045
.055
1.14
1.40
CH
.058
.100
1.47
2.54
LW
.022
.028
0.56
0.71
L3
.003
.007
0.08
0.18
LW2
.006
.022
0.15
0.56
LH
.026
.039
0.66
0.99
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimension "CH" controls the overall package thickness.
4. The corner shape (square, notch, radius, etc.) may vary at the manufacturer's option from that shown on
the drawing.
5. Dimensions "LW2" minimum and "L3" minimum and the appropriate castellation length define an
unobstructed three-dimensional space traversing all of the ceramic layers in which a castellation was
designed. (Castellations are required on bottom two layers, optional on top ceramic layer.) Dimension
"LW2" maximum and "L3" maximum define the maximum width and depth of the castellation at any point
on its surface. Measurement of these dimensions may be made prior to solder dipping.
6. Lead 4 = collector.
7. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

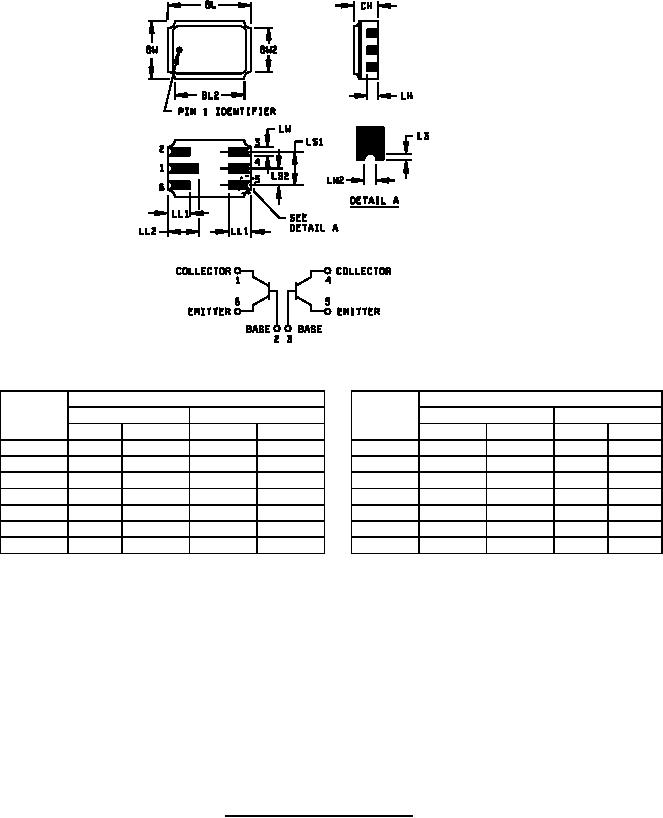

FIGURE 2. Physical dimensions, 2N5794U.
