MIL-PRF-19500-539 Semiconductor Device, Transistor, Npn, Silicon, Power Darlington, Types 2N6300 And 2N6301, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN silicon, power Darlington transistors. Three levels of product assurance are provided for each device type as specified in MIL–PRF–19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/539F

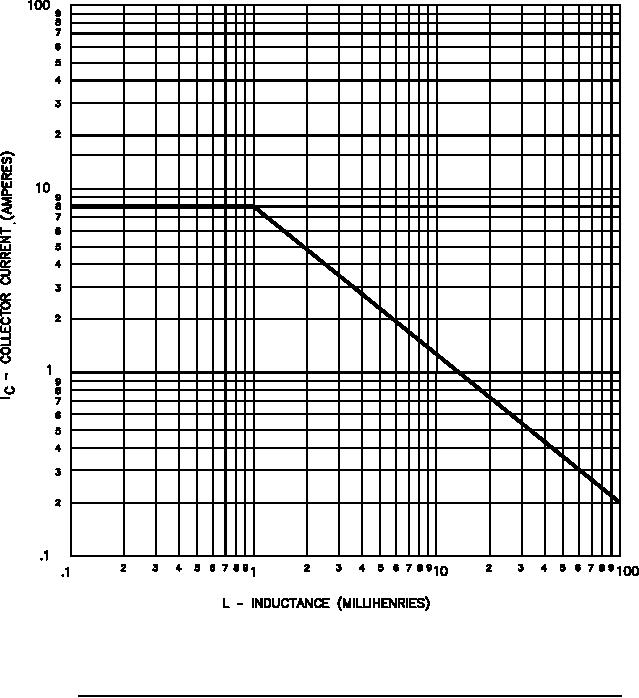

FIGURE 7. Safe operating area for switching between saturation and cutoff (unclamped inductive load).
