MIL-PRF-19500-543 Semiconductor Device, Field Effect Transistors, N-Channel, Silicon Avalanche, Types 2N6764, 2N6764T1, 2N6766, 2N6766T1, 2N6768, 2N6768T1, 2N6770, And 2N6770T1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for N-channel, enhancement-mode, MOSFET, power transistors. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500 and two levels of product assurance for each unencapsulated die, with avalanche energy ratings \(EAS and EAR\) and maximum avalanche current \(IAR\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/543N

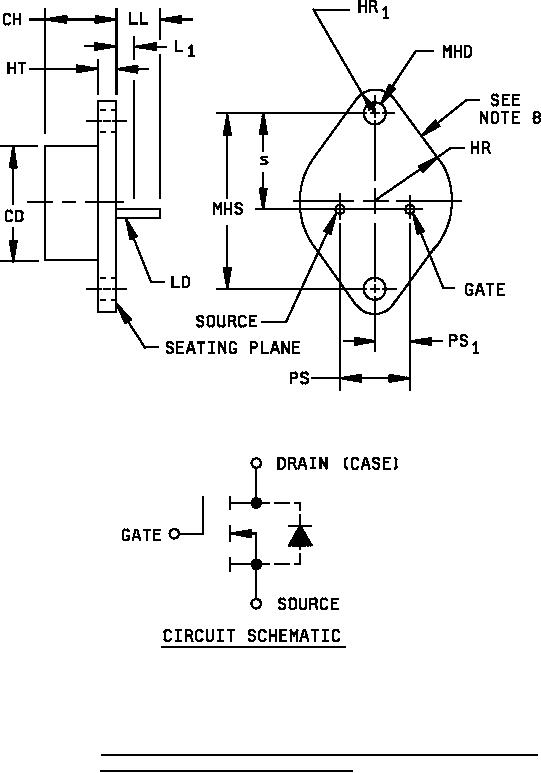

FIGURE 1. Physical dimensions of transistor types 2N6764 and 2N6766, TO-204AE;
for types 2N6768 and 2N6770, TO-204AA.
