MIL-PRF-19500-543 Semiconductor Device, Field Effect Transistors, N-Channel, Silicon Avalanche, Types 2N6764, 2N6764T1, 2N6766, 2N6766T1, 2N6768, 2N6768T1, 2N6770, And 2N6770T1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for N-channel, enhancement-mode, MOSFET, power transistors. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500 and two levels of product assurance for each unencapsulated die, with avalanche energy ratings \(EAS and EAR\) and maximum avalanche current \(IAR\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/543N
Dimensions 2N6764 and 2N6766
Dimensions 2N6768 and 2N6770
Ltr
Inches
Millimeters
Inches
Millimeters
Min
Max
Min
Max
Min
Max
Min
Max
A
.252
.262
6.40
6.65
.252
.262
6.40
6.65
B
.252
.262
6.40
6.65
.252
.262
6.40
6.65
C
.027
.037
0.69
0.94
.025
.035
0.64
0.89
D
.012
.022
0.30
0.56
.043
.053
1.09
1.35
E
.057
.067
1.45
1.70
.032
.042
0.81
1.07
F
.013
.023
0.33
0.58
.015
.025
0.38
0.64
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Unless otherwise specified, tolerance is ± .005 inch (0.13 mm).
4. The physical characteristics of the die thickness are .0187 inch (0.474 mm). The back metals are
chromium, nickel and silver. The top metal is aluminum and the back contact is the drain.
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

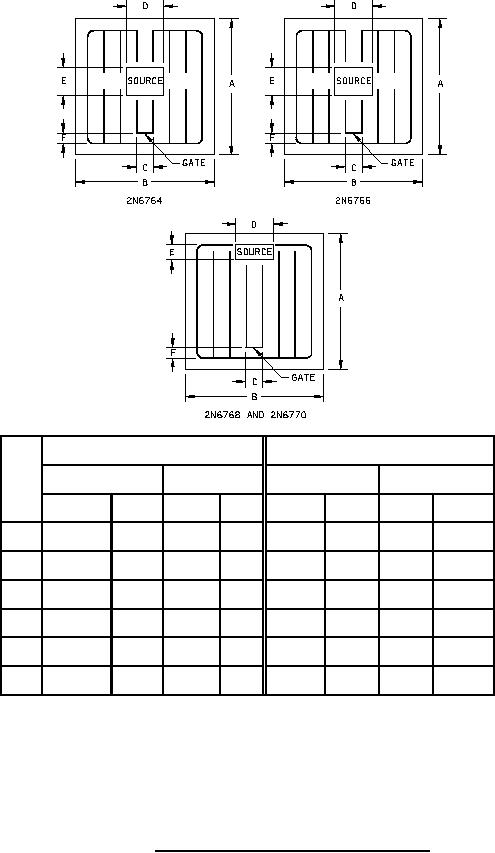

FIGURE 3. JANHC and JANKC A-version die dimensions.
2N6764 and 2N6766
6
