MIL-PRF-19500-563 Semiconductor Device, Field Effect Transistor, P-Channel, Silicon, Types 2N6845, 2N6845U, 2N6847, And 2N6847U, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for a P-Channel, enhancement-mode, MOSFET, power transistor. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/563G
2N6845
Hex-2: -100 V P-channel
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.106
.122
2.69
3.10
B
.087
.103
2.21
2.62
C
.022
.030
0.56
0.76
D
.028
.036
0.71
0.91
E
.014
.022
0.36
0.56
F
.021
.029
0.53
0.74
NOTES:
1.  Dimensions are in inches.
2.  Millimeters are given for general information only.
3.  The physical characteristics of the die are: the back metals are chromium, nickel, and silver. The
top metal is aluminum and the back contact is the drain.
4.  Die thickness is .0187 (0.475 mm) ±.0050 (0.130 mm).

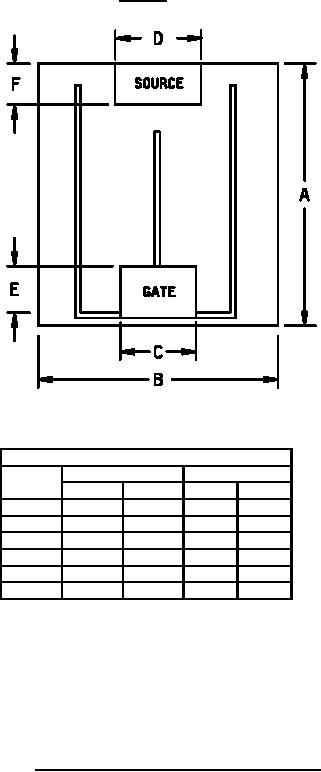

FIGURE 3. JANHCA and JANKCA die dimensions, 2N6845.
4
