MIL-PRF-19500-563 Semiconductor Device, Field Effect Transistor, P-Channel, Silicon, Types 2N6845, 2N6845U, 2N6847, And 2N6847U, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for a P-Channel, enhancement-mode, MOSFET, power transistor. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/563G
2N6847
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.129
.145
3.28
3.68
B
.079
.095
2.01
2.41
C
.025
.033
0.64
0.84
D
.027
.035
0.68
0.89
E
.019
.027
0.48
0.69
F
.020
.028
0.51
0.71
NOTES:
1.  Dimensions are in inches.
2.  Millimeters are given for general information only.
3.  The physical characteristics of the die are: the back metals are chromium, nickel, and silver. The
top metal is aluminum and the back contact is the drain.
4.  Die thickness is .0187 (0.475 mm) ±.0050 (0.130 mm).

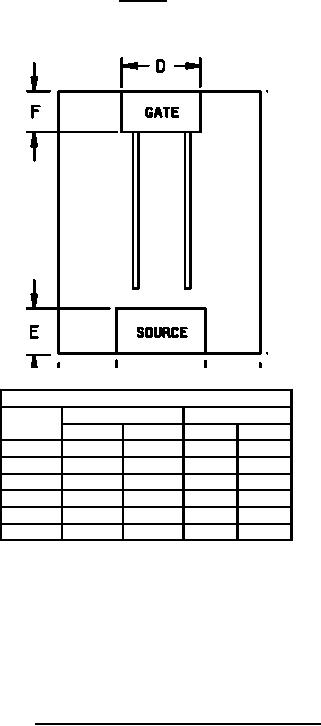

FIGURE 4. JANHCA and JANKCA die dimensions, 2N6847.
