MIL-PRF-19500-570 Semiconductor Device, Transistor, Field Effect, N-Channel, Silicon Logic-Level, Types 2N6901 And 2N6903, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for a logic-level N-channel, enhancement-mode, MOSFET, power transistor. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are also provided for each unencapsulated device type. See 6.4 or JANHC and JANKC die versions.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-19500/570E

2N6901

Dimensions - 2N6901

Ltr

Inches

Millimeters

Min

Max

Min

Max

.056

.062

1.42

1.58

.044

.051

1.12

1.30

.012

.016

.30

.41

.006

.010

.15

.25

.010

.014

.25

.36

.015

.019

.38

.48

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Unless otherwise specified, tolerance is �.005 inch (0.13 mm).



4. The physical characteristics of the die are: The back metals are chromium, nickel, and silver and the back contact

is the drain. The top metal is aluminum.

5. Die thickness is .015 inch (0.38 mm) �.001 inch (0.025 mm).



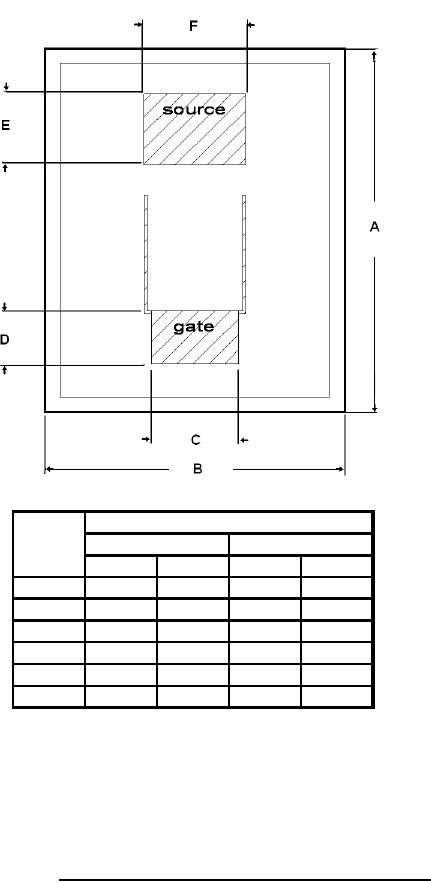

* FIGURE 2 . JANHCA and JANKCA (A-version) die dimensions for 2N6901
