MIL-PRF-19500-599 Semiconductor Device, Transistors, Quad, Field Effect, P-Channel, Silicon, Type 2N7335, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for quad P-channel, enhancement-mode, MOSFET, power transistor with avalanche energy ratings \(EAS and EAR\) and maximum avalanche current \(IAR\). Four levels of product assurance are provided for each encapsulated device type as specified in MIL?√PRF?√19500. Two levels of product assurance for each unencapsulated device type die \(element evaluation\) as specified in MIL?√PRF?√19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/599E

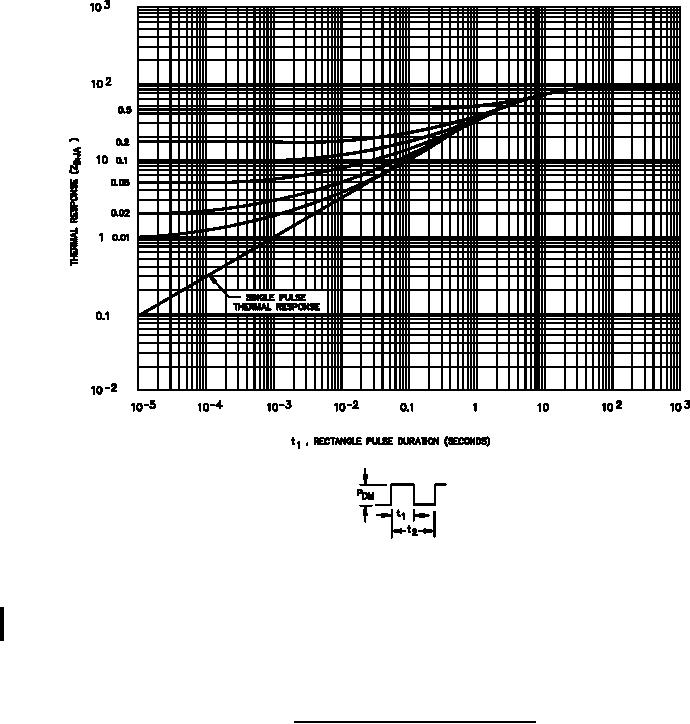

NOTES:
1.
The curves are from bottom to top are: Single pulse, D = 0.01, D = 0.02, D = 0.05, D = 0.1, and D = 0.5.
2.
Pulse duration magnitude = PDM
Duty factor D = t1 / t2.
3.
Peak TJ = PDM x ZthJA + TC.
4.
FIGURE 4. Normalized transient thermal impedance.
16
