MIL-PRF-19500/611A
|
|
|
|
|
Dimensions
|
| Ltr
|
|
|
|
| Millimeters
| Inches
|
|
|
|
|
|
|
|
| Min
| Max
| Min
| Max
|
|
|
|
|
|
|
| CH
| 6.32
| 6.60
| .249 | .260
|
|
|
|
|
|
|
| TT
| 1.02
| 1.27
| .040 | .050
|
|
|
|
|
| LO
| 3.81 BSC
| .150 BSC
|
|
|
|
|
|
|
| TL
| 20.07 | 20.32
| .790 | .800
|
|
|
|
|
|
|
| BL
| 13.59 | 13.89
| .535 | .545
|
|
|
|
|
| LS
| 3.81 BSC
| .150 BSC
|
|
|
|
|
|
|
| TW
| 13.59 | 13.89
| .535 | .545
|
|
|
|
|
|
|
| LL
| 30.35 | 31.37
|1.195 |1.235
|
|
|
|
|
|
|
| MHO
| 16.89 | 17.40
| .665 | .685
|
|
|
|
|
|
|
| MHD
| 3.53
| 3.78
| .139 | .149
|
|
|
|
|
|
|
| LD
| 0.89
| 1.43
| .035 | .045
|
|
|
|
|Term 1
|
Base
|
|
|
|
|Term 2
|
Collector
|
|
|
|
|Term 3
|
Emitter
|
NOTES:
1. Dimensions are in millimeters.
2. Inch equivalents are given for general information only.
3. All terminals are isolated from case.

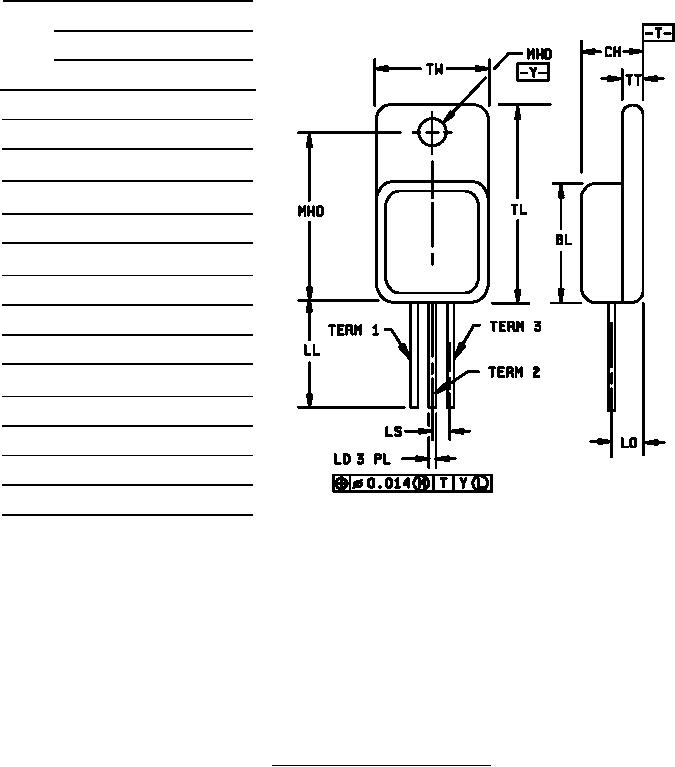

FIGURE 1. Dimensions and configuration (T0-254AA).
10
