MIL-PRF-19500-611 Semiconductor Device, Transistor, Npn, Silicon, Power Switching Types 2N7374, 2N7375, 2N7376, And 2N7377, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, power transistors for use in high-speed power switching applications. Three levels of product assurance are provided as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/611A
|
|
|
|
|
Dimensions
|
| Ltr
|
|
|
|
|  Millimeters
|
Inches
|
|
|
|
|
|
|
|
| Min
| Max
| Min  | Max
|
|
|
|
|
|
|
| CH
| 4.83
| 5.08
| .190  | .200
|
|
|
|
|
|
|
| TT
| 0.89
| 1.14
| .035  | .045
|
|
|
|
|
| LO
|
3.05 BSC
| .120 BSC
|
|
|
|
|
|
|
| TL
| 16.38  | 16.89
| .645  | .665
|
|
|
|
|
| BL
| 10.41  | 10.92
| .410  | .430
|
|
|
|
|
|
|
| BLO
| 15.06  | 15.42
| .593  | .607
|
|
|
|
|
| LS
|  2.54 BSC
| .100 BSC
|
|
|
|
|
|
|
| TW
| 10.41  | 10.67
| .410  | .420
|
|
|
|
|
|
|
| LL
| 26.21  | 28.75
|1.032  |1.132
|
|
|
|
|
|
|
| MHO
| 13.39  | 13.64
| .527  | .537
|
|
|
|
|
|
|
| MHD
| 3.56
| 3.81
| .140  | .150
|
|
|
|
|
|
|
| LD
| 0.64
| 0.89
| .025  | .035
|
|
|
|
|Term 1
|
Base
|
|
|
|
|Term 2
|
Collector
|
|
|
|
|Term 3
|
Emitter
|
NOTES:
1. Dimensions are in millimeters.
2. Inch equivalents are given for general information only.
3. Glass meniscus included in dimension D and D1.

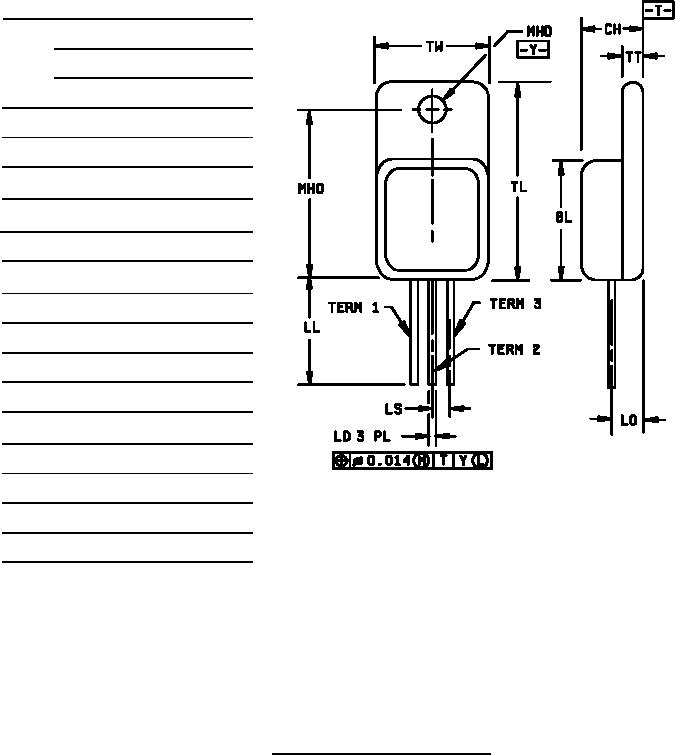

FIGURE 2. Dimensions and configuration (T0-257AA).
11
