MIL-PRF-19500-611 Semiconductor Device, Transistor, Npn, Silicon, Power Switching Types 2N7374, 2N7375, 2N7376, And 2N7377, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, power transistors for use in high-speed power switching applications. Three levels of product assurance are provided as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-19500/611A

NOTES:

1. The input waveform is supplied by a pulsed generator with the following characteristics: tr ≤ 15 ns, tf ≤ 15 ns, ZOUT = 50 Ω, PW =

10 �s, duty cycle ≤ 2%.

2. Output waveforms are monitored on an oscilloscope with the following characteristics: tr ≤ 1.0 ns, ZIN ≥ 10 MΩ, CIN ≤ 11.5 pF.

3. Resistors shall be noninductive types.

4. The dc power supplies may require additional bypassing in order to minimize ringing.

5. The input pulse voltages and supply voltages (-4 V dc and +100 V dc) are nominal and shall be adjusted to obtain

IB1 = -IB2 = 50 mA and IC = 1 A.

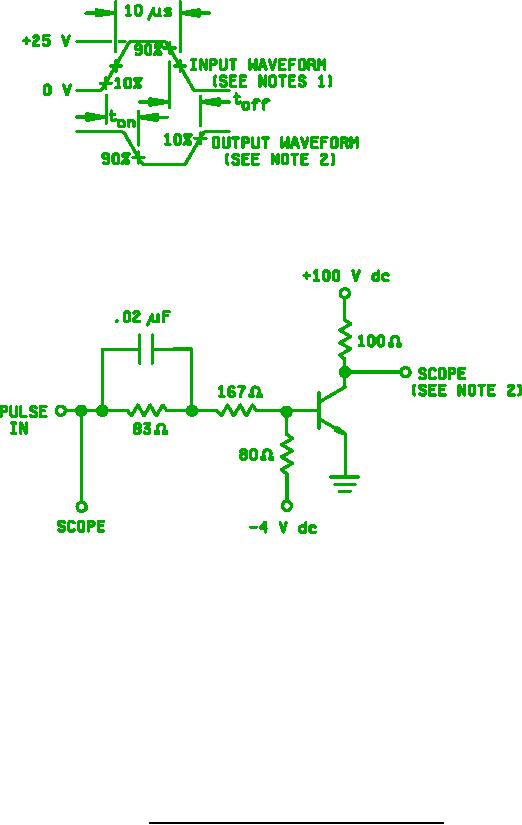

FIGURE 4. Pulse response test circuit for types 2N7375 and 2N7377.
