MIL-PRF-19500-117 Semiconductor Devices, Diode, Silicon, Voltage Regulator, Types 1N962B- 1 Through 1N992B-1, And 1N962Bur-1 Through 1N992Bur-1, 1N962C-1 Through 1N992C-1, And 1N962Cur-1 Through 1N992Cur-1, And 1N962D-1 Through 1N992D-1, 1N962Dur-1 Through 1N992Dur-1, Jan, Jantx, Jantxv, Janhc And JankcThis specification covers the performance requirements for 500 milliwatt, silicon, voltage regulator diodes with voltage tolerances of 5 percent, 2 percent, and 1 percent. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. One level of product assurance is provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16

MIL-PRF-19500/117R

DO-35

Dimensions

Symbol

Notes

Inches

Millimeters

Min

Max

Min

Max

.055

.090

1.40

2.29

.120

.200

3.05

5.08

.018

.022

0.46

0.56

1.000

1.500

25.40

38.10

LL1

.050

1.27

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Package contour optional within BD and length BL. Heat slugs, if any, shall be included within this cylinder

but shall not be subject to minimum limit of LD. The BL dimension shall include the entire body including

slugs (new note).

4. Within LL1 lead diameter may vary to allow for flash, lead finish build-up, and minor irregularities other than

heat slugs.

5. In accordance with ASME Y14.5M, diameters are equivalent to ΦX symbology.

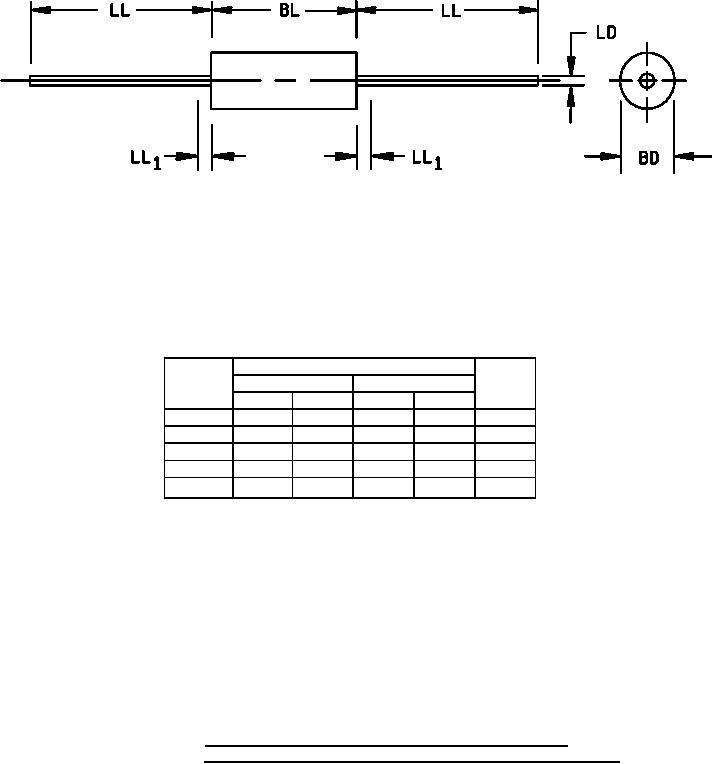

FIGURE 1. Physical dimensions for types 1N962B-1 through 1N992B-1,

1N962C-1 through 1N992C-1, 1N962D-1 through 1N992D-1 (DO-35).
