MIL-PRF-19500-117 Semiconductor Devices, Diode, Silicon, Voltage Regulator, Types 1N962B- 1 Through 1N992B-1, And 1N962Bur-1 Through 1N992Bur-1, 1N962C-1 Through 1N992C-1, And 1N962Cur-1 Through 1N992Cur-1, And 1N962D-1 Through 1N992D-1, 1N962Dur-1 Through 1N992Dur-1, Jan, Jantx, Jantxv, Janhc And JankcThis specification covers the performance requirements for 500 milliwatt, silicon, voltage regulator diodes with voltage tolerances of 5 percent, 2 percent, and 1 percent. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. One level of product assurance is provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-19500/117R
Dimensions
JANHCA
JANHCB
Ltr
Inches
Millimeters
Inches
Millimeters
Min
Max
Min
Max
Min
Max
Min
Max
A
.021
.025
.53
.63
.024
.028
0.61
0.71
B
.013
.017
.33
.43
.017
.021
0.43
0.53
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. The physical characteristics of the die thickness are .010 ±.002 (0.25 mm ±0.051).
Metallization:
top = (anode) - AL,
back: (cathode) - AU,
AL thickness = 12,000 Å minimum for JANHCA and 40,000 Å minimum for JANHCB,
AU thickness = 3,000 Å minimum for JANHCA, and 5,000 Å minimum for JANHCB.
4. Circuit layout data: For zener operation, cathode must be operated positive with respect to anode.
5. Requirements in accordance with appendix G of MIL-PRF-19500, are performed in a TO-5 package (see 6.5).

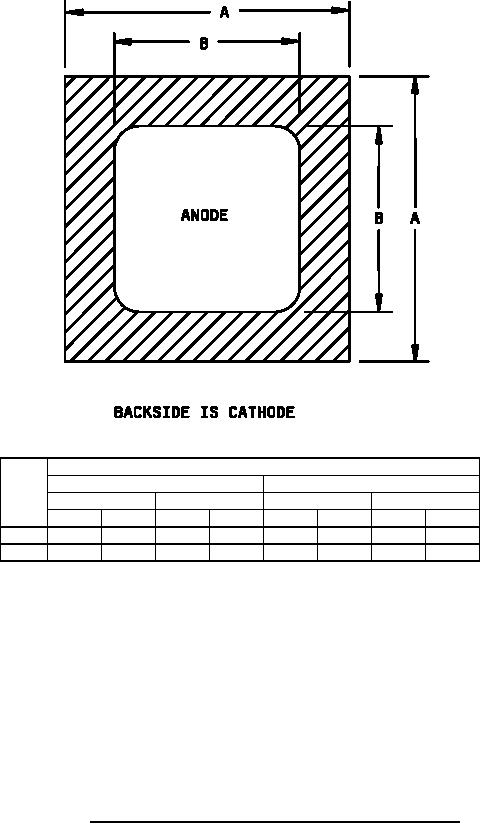

FIGURE 3. Physical dimensions (JANHCA and JANHCB die dimensions).
5
