MIL-PRF-19500/255Y

Physical characteristics:

B-version

NOTES:

.023 x .023 inch �.002 inch (0.584 mm x 0.584 mm �0.051 mm).

1. Chip size:

.010 �.0015 inch (0.254 mm �0.038 mm).

2. Chip thickness:

3. Top metal:

Aluminum 15,000� minimum, 18,000� nominal for JANHC.

AlSiCu 16,000� minimum, 18,000� nominal for JANKC.

4. Back metal:

Gold 4,500� minimum, 5,000� nominal.

Si3N4 2,000 � minimum, 8,000 � nominal for JANHC.

5. Glassivation:

SiON 8,500 � minimum, 9,000 � nominal for JANKC

6. Backside:

Collector.

7. Bonding pad:

B = .0042 x .0042 inch (0.107 mm x 0.107 mm).

E = .0042 x .0042 inch (0.107 mm x 0.107 mm).

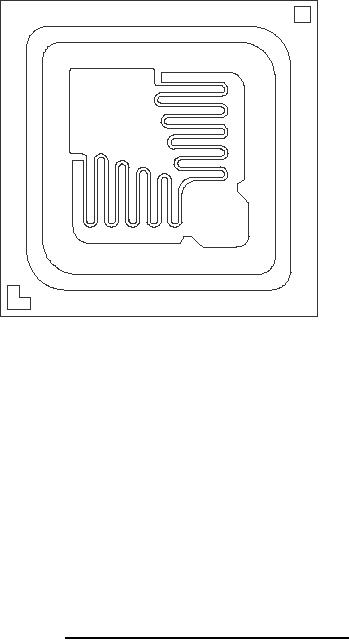

FIGURE 4. JANHC and JANKC (B-version) die dimensions.
