MIL-PRF-19500/255Y

NOTES:

.023 x .023 inch �.002 inch ( 0.584 mm x 0.584 mm �0.051 mm).

1. Chip size:

.010 �.0015 inch (0.254 mm �0.038 mm).

2. Chip thickness

3. Top metal:

AlSiCu 16,260 � minimum, 20,320 � nominal for JANHC and JANKC.

4. Back metal:

Gold

4,500 � minimum, 5,000 � nominal for JANHC and JANKC.

6,500 � minimum, 8,000 � nominal for JANHC and JANKC.

5. Glassivation:

SiO2

6. Backside:

Collector.

7. Bonding pad:

B = .0043 x .0043 inch (0.110 mm x 0.110 mm).

E = .0043 x .0043 inch (0.110 mm x 0.110 mm).

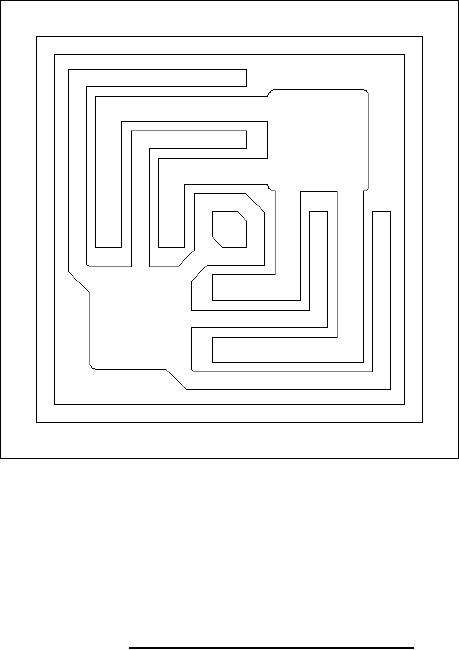

* FIGURE 6. JANHC and JANKC (D-version) die dimensions.
