MIL-PRF-19500/286K
Dimensions
Symbol
Notes
Inches
Millimeters
Min
Max
Min
Max
BD
.065
.110
1.65
2.79
3
BL
.125
.250
3.18
6.35
4
*
*
LD
.027
.032
0.69
0.81
*
LL
.70
1.30
17.78
33.02
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimension BD shall be measured at the largest diameter.
4. The BL dimension shall include the entire body including slugs and sections of the
leads over which the diameter is uncontrolled. This uncontrolled area is defined
as the zone between the edge of the diode body and extending .050 inch (1.27
mm) onto the leads.
5. The shape of the body, within the bounds of the dimensions is optional.
6. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

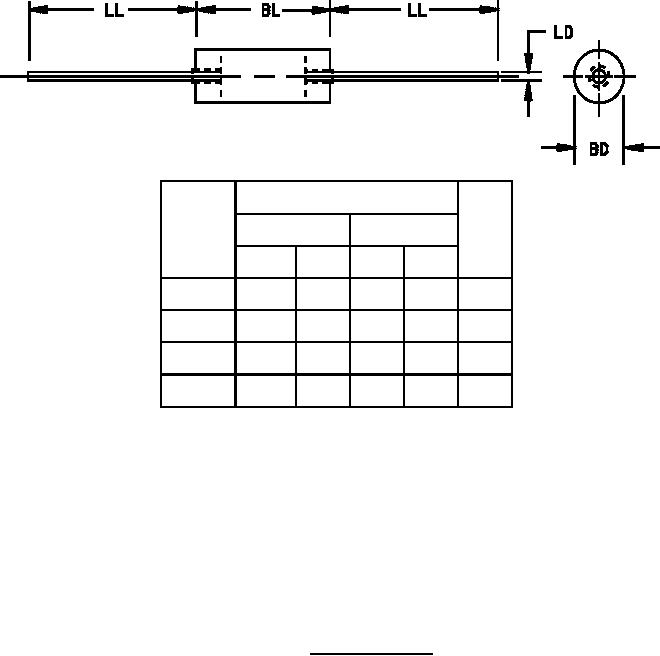

* FIGURE 1. Physical dimensions.
3
