MIL-PRF-19500-313 Semiconductor Device, Transistor, Npn, Silicon, Low Power, Types 2N2432, 2N2432A, 2N2432Ub, 2N2432Aub, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for low power, high speed chopper, NPN silicon transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for die.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/313J
NOTES:
.015 x .019 inch ±.001 inch, (0.38 x 0.48 ±0.02 millimeter).
1. Chip size
.010 ±.0015 inch, (0.25 ±0.04 millimeter).
2. Chip thickness
3. Top metal
Aluminum 15,000Å minimum, 18,000Å nominal.
*  4. Back metal
Gold 3,500Å minimum, 5,000Å nominal.
5. Backside
Collector
6. Bonding pad
B = .003 inch (0.08 millimeter).
E = .004 inch diameter (0.10 millimeter).
Si3N4 (Silicon Nitride) 5.6 kÅ min, 8 kÅ nom.
*
7. Passivation
*
8. See 6.4.

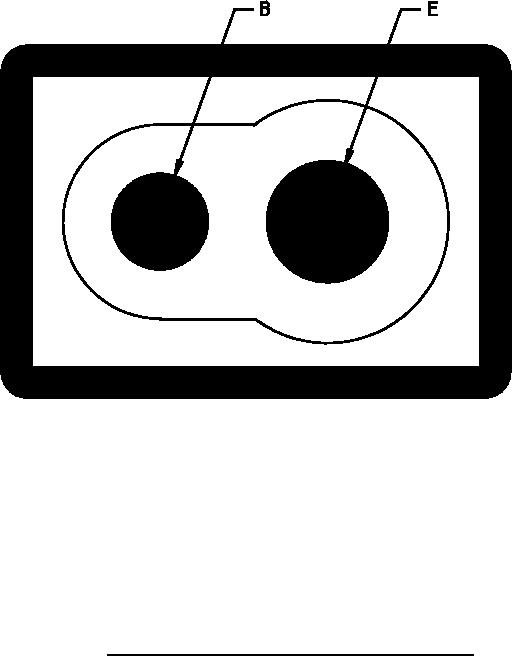

FIGURE 2. Physical dimensions, JANHCA and JANKCA (B - version) die.
