MIL-PRF-19500-313 Semiconductor Device, Transistor, Npn, Silicon, Low Power, Types 2N2432, 2N2432A, 2N2432Ub, 2N2432Aub, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for low power, high speed chopper, NPN silicon transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for die.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/313J
UB
Dimensions
Dimensions
Symbol
Note
Note
Symbol
Inches
Millimeters
Inches
Millimeters
Min
Max
Min
Max
Min
Max
Min
Max
BH
.046
.056
1.17
1.42
LS1
.035
.039
0.89
0.99
BL
.115
.128
2.92
3.25
LS2
.071
.079
1.80
2.01
BW
.085
.108
2.16
2.74
LW
.016
.024
0.41
0.61
CL
.115
.128
2.92
3.25
r
.008
0.20
CW
.085
.108
2.16
2.74
r1
.012
0.31
LL1
.022
.038
0.56
0.96
r2
.022
0.56
LL2
.017
.035
0.43
0.89
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Hatched areas on package denote metallized areas
4. Pad 1 = Base, Pad 2 = Emitter, Pad 3 = Collector, Pad 4 = Shielding connected to the lid.
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

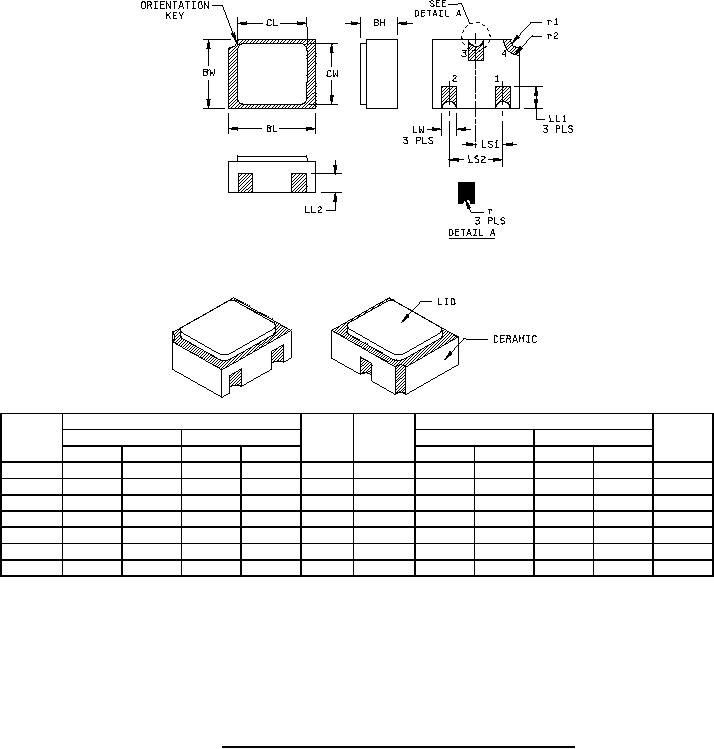

* FIGURE 3. Physical dimensions, surface mount (AUB and UB version).
5
