MIL-PRF-19500-356 Semiconductor Device, Diode, Silicon, Voltage Regulator, Types 1N4954 Through 1N4996, 1N5968, 1N5969,And 1N6632 Through 1N6637, 1N4954Us Through 1N4996Us, 1N5968Us, 1N5969Us, And 1N6632Us Through 1N6637Us, And C And D Tolerance Suffix Devices, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for silicon, voltage regulator diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500, and two levels of product assurance for each unencapsulated device type die.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


.
MIL-PRF-19500/356L
A version
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.059 sq
.072 sq
1.50 sq
1.83 sq
B
.056 sq
.065 sq
1.42 sq
1.65 sq
C
.006
.012
0.15
0.30
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metallization: Top (cathode) - Silver.
Back (anode) - Silver.
See 3.4.3 herein.

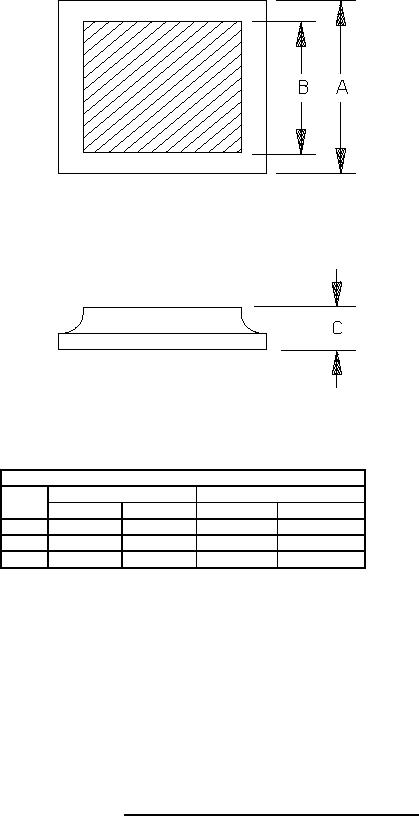

FIGURE 3. Physical dimensions JANHCA and JANKCA (die).
5
