MIL-PRF-19500/392J
Maximum Thermal Impedance
1000
100
10
1
0.000001
0.00001
0.0001
0.001
0.01
0.1
1000
1
10
100
Time (s)
TA = +25°C at Pdiss = 500mW (Thermal Resistance RθJA = 325°C/W at 500mW)

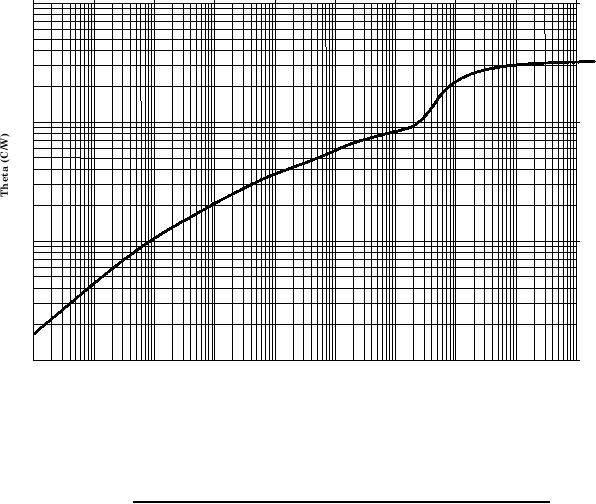

FIGURE 4. Thermal impedance graph (RθJA) for 2N3485A, and 2N3486A (TO-46).
15
