MIL-PRF-19500-392 Semiconductor Device, Transistor, Pnp, Silicon, Switching, Types 2N3485A And 2N3486A, Jan, Jantx, And JantxvThis specification covers the performance requirements for PNP silicon switching transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/392J
NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be ≤ 2.0 ns; duty cycle ≤ 2 percent; generator
source impedance shall be 50 ohms.
2. Output sampling oscilloscope: Zin ≥ 100 kΩ; Cin ≤ RPF; rise time ≤ 0.2 ns.

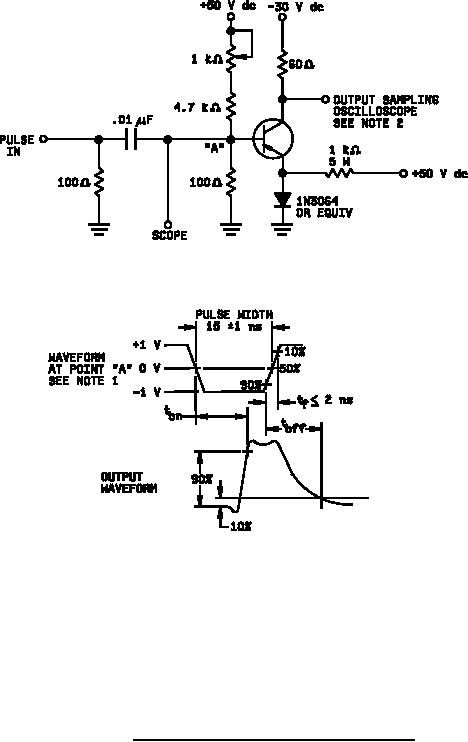

FIGURE 8. Nonsaturated turn-on switching time test circuit.
18
