MIL-PRF-19500-406 Semiconductor Devices, Diode, Silicon, Voltage Regulator, Types 1N4460, 1N4460C, 1N4460D Through 1N4496, 1N4496C, 1N4496D, And 1N6485, 1N6485C, 1N6485D Through 1N6491, 1N6491C, 1N6491D, 1N4460Us, 1N4460Cus, 1N4460Dus Through 1N4496Us, 1N4496Cus, 1N4496Dus, And 1N6485Us, 1N6485Cus, 1N6485Dus Through 1N6491Us, 1N6491Cus, 1N6491Dus, 1N4460Um Through 1N4496Um, Plus C And D ...This specification covers the performance requirements for micro-miniature 1.5 watt silicon, low leakage, voltage regulator diodes with tolerances of 5 percent, 2 percent, and 1 percent. Four levels of product assurance are provided for each encapsulated device type as specified in MIL–PRF–19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/406L
Thermal Impedance Curve
1N4462 through 1N4496
100.0
10.0
1.0
1
10
100
1000
10000
100000
tH(Heating time) ms
ZθJX = 5.7° C/W at 10 ms
RθJL = 42° C/W

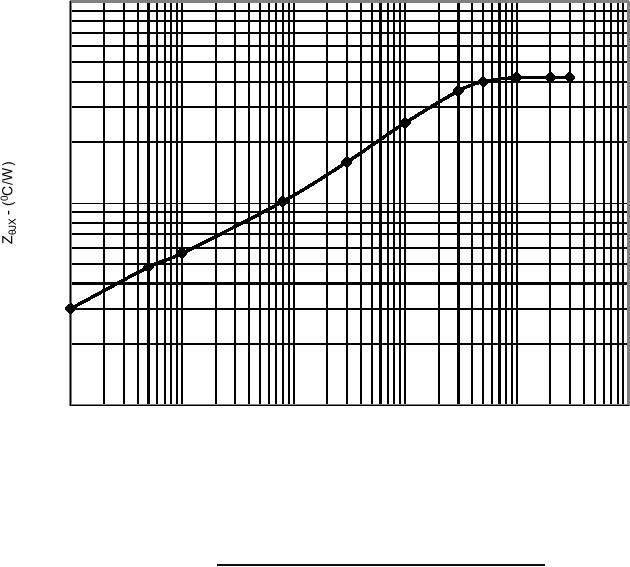

FIGURE 10. Thermal impedance curve for 1N4462 through 1N4496.
23
