MIL-PRF-19500-406 Semiconductor Devices, Diode, Silicon, Voltage Regulator, Types 1N4460, 1N4460C, 1N4460D Through 1N4496, 1N4496C, 1N4496D, And 1N6485, 1N6485C, 1N6485D Through 1N6491, 1N6491C, 1N6491D, 1N4460Us, 1N4460Cus, 1N4460Dus Through 1N4496Us, 1N4496Cus, 1N4496Dus, And 1N6485Us, 1N6485Cus, 1N6485Dus Through 1N6491Us, 1N6491Cus, 1N6491Dus, 1N4460Um Through 1N4496Um, Plus C And D ...This specification covers the performance requirements for micro-miniature 1.5 watt silicon, low leakage, voltage regulator diodes with tolerances of 5 percent, 2 percent, and 1 percent. Four levels of product assurance are provided for each encapsulated device type as specified in MIL┬ûPRF┬û19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/406L

Dimensions

Inches

Millimeters

Notes

Ltr

Min

Max

Min

Max

.060

.085

1.52

2.16

.106

.160

2.69

4.06

.028

.032

0.71

0.81

.800

1.300

20.32 33.02

.050

1.27

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Package contour optional with BD and length BL. Heat slugs, if any, shall be included within this

cylinder length but shall not be subject to minimum limit of BD.

4. The specified lead diameters apply in the zone between .050 inch (1.27 mm) from the diode body and

the end of the lead.

5. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

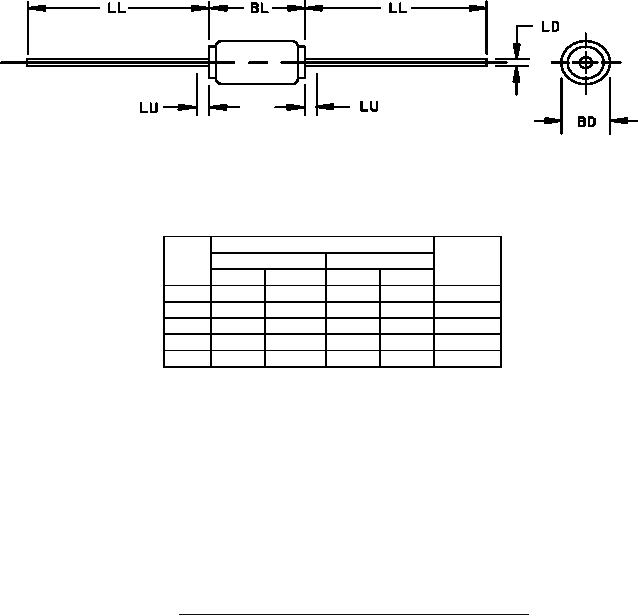

FIGURE 1. Physical dimensions of non-surface mount device (DO-41).
