MIL-PRF-19500-445 Semiconductor Device, Diode, Silicon, Switching Types 1N5712, 1N5712-1 And 1N5712Ur-1, Jan, Jantx, Jantxv, Janj, Jans, Janhc And Jankc \(S/S By Mil-Prf-19500/444\)This specification covers the performance requirements for Schottky barrier diodes. Five levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two level of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/445D

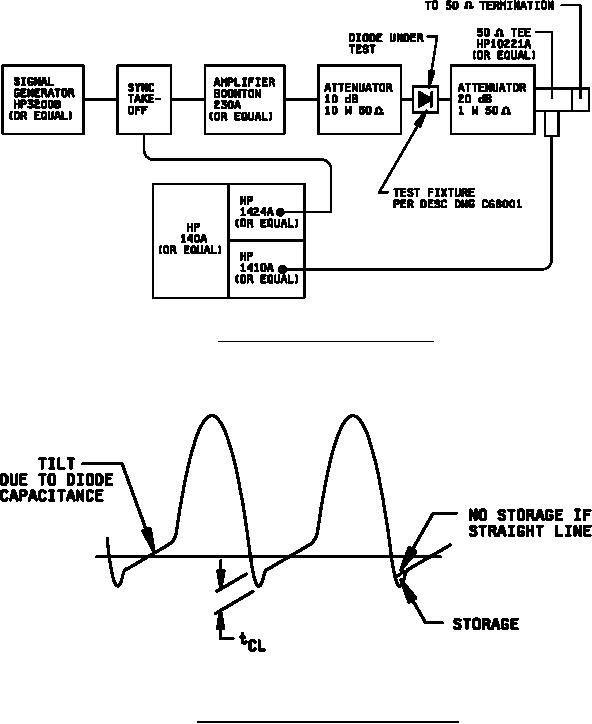

FIGURE 5. Test setup for diode lifetime measurement.
-FIGURE 6. Oscilloscope display in diode lifetime measurement.
