MIL-PRF-19500-445 Semiconductor Device, Diode, Silicon, Switching Types 1N5712, 1N5712-1 And 1N5712Ur-1, Jan, Jantx, Jantxv, Janj, Jans, Janhc And Jankc \(S/S By Mil-Prf-19500/444\)This specification covers the performance requirements for Schottky barrier diodes. Five levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two level of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/445D
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
Notes
BL
.150
.170
3.81
4.32
3
LD
.068
.076
1.73
1.93
3, 4
L
1.000
1.500
25.40
38.10
BD
.014
.022
0.36
0.56
NOTES:
1.  Dimensions are in inches.
2.  Metric equivalents are given for general information only.
3.  Dimensions BL and LD include all components of the diode periphery except the sections of the leads over which the diameter is
controlled.
4.  Dimension BD shall be measured at the largest diameter.
5.  In accordance with ANSI Y14.5M, diameters are equivalent to φx symbology.

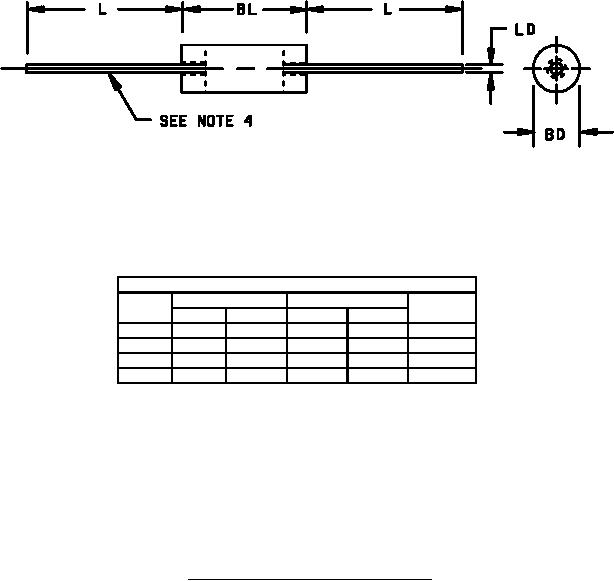

FIGURE 1. Physical dimensions for 1N5712 and 1N5712-1.
