MIL-PRF-19500/557L
Dimensions
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
CD
.305
.355
7.75
9.02
CH
.160
.180
4.07
4.57
HD
.335
.370
8.51
9.39
h
.009
.041
0.23
1.04
J
.028
.034
0.72
0.86
2
k
.029
.045
0.74
1.14
3
LD
.016
.021
0.41
0.53
7, 8
LL
.500
.750
12.7
19.05
7, 8
LS
.200 TP
5.08 TP
6
LU
.016
.019
0.41
0.48
7, 8
L1
.050
1.27
7, 8
L2
.250
6.35
7, 8
P
.070
1.78
5
Q
.050
1.27
4
r
.010
0.25
9
α
45° TP
45° TP
6
NOTES:
1. Dimensions are in inches. Millimeters are given for general information only.
2. Beyond radius (r) maximum, j shall be held for a minimum length of .011 (0.028 mm).
3. Dimension k measured from maximum HD.
4. Outline in this zone is not controlled.
5. Dimension CD shall not vary more than .010 (0.25 mm) in zone P. This zone is controlled for automatic
handling.
6. Leads at gauge plane .054 +.001, -.000 (1.37 +0.03, -0.00 mm) below seating plane shall be within .007
(0.18 mm) radius of true position (TP) at maximum material condition (MMC) relative to tab at MMC.
7. LU applies between L1 and L2. LD applies between L2 and L minimum. Diameter is uncontrolled in L1 and
beyond LL minimum.
8. All three leads.
9. Radius (r) applies to both inside corners of tab.
10. Drain is electrically connected to the case.
11. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

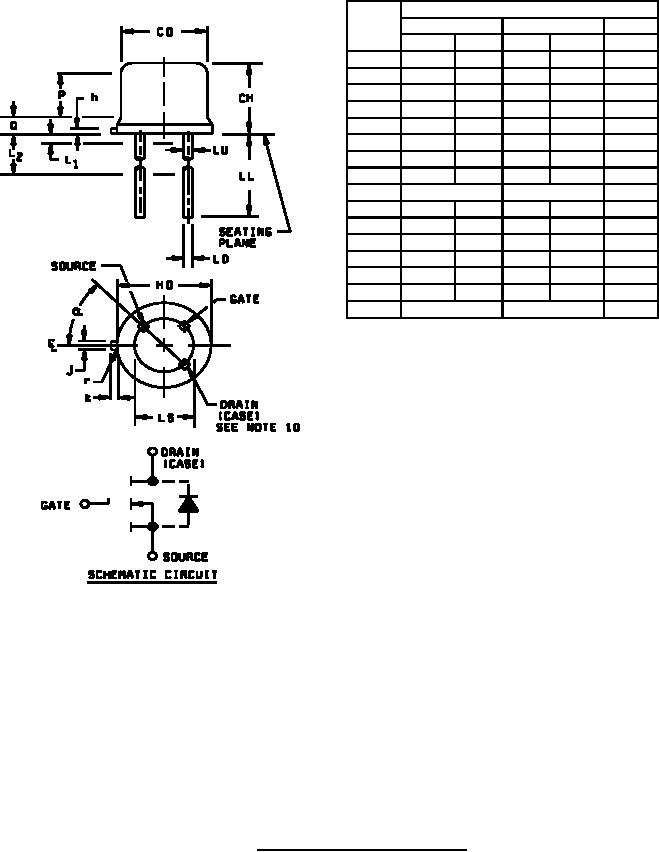

FIGURE 1. Physical dimensions for TO-205AF.
