MIL-PRF-19500/557L

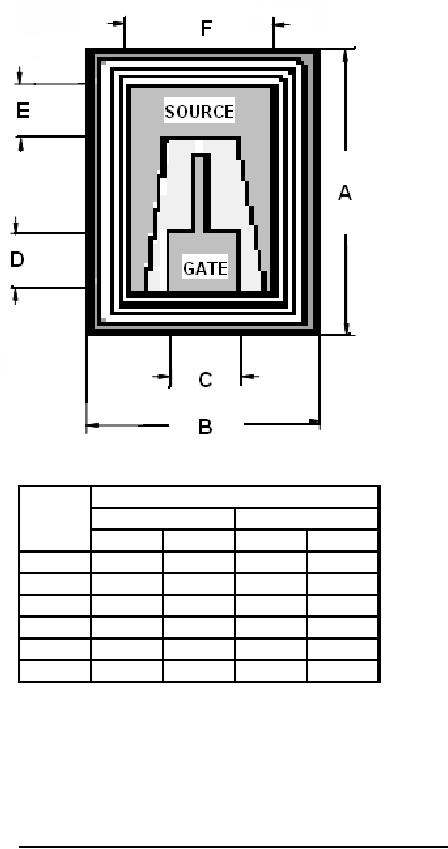

Dimensions - 2N6800 and 2N6802
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.178
.182
4.52
4.62
B
.114
.118
2.89
2.99
C
.038
.040
.96
1.02
D
.038
.040
.96
1.02
E
.048
.051
1.22
1.30
F
.096
.100
2.44
2.54
NOTES:
1.  Dimensions are in inches.
2.  Millimeters are given for general information only.
±.
3.  Unless otherwise specified, tolerance is  ฀005 inch (0.13 mm).
4.  The physical characteristics of the die are: The back metals are Titanium, nickel, and silver and
the back contact is the drain. The top metal is aluminum.
±.
5.  Die thickness is .018 inch (0.46 mm)  ฀001 inch (0.025 mm).
FIGURE 5. JANHCC and JANKCC (C-version) die dimensions for 2N6800, 2N6802.
6
