MIL-PRF-19500/560L

NOTES:

.128 x .128 inch �.002 inch (3.25 x 3.25 �0.051 mm).

Chip size:

.010 �.002 inch (0.254 �0.0508 mm) nominal.

Chip thickness:

Top metal:

Aluminum 30,000� minimum, 33,000� nominal.

Back metal:

Gold 3,500� minimum, 5,000� nominal.

Backside:

Collector.

Bonding pad:

B = .052 x .012 inch (1.321 x 0.305 mm), E = .084 x .012 inch (2.134 x 0.305 mm).

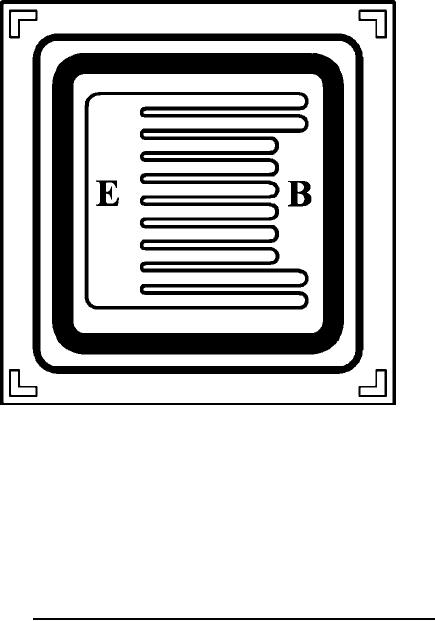

FIGURE 4. Physical dimensions JANHC and JANKC D-version die dimensions.
