MIL-PRF-19500/590K
NOTES:
1.  Oscilloscope: Rise time ≤ 3 ns; input impedance = 1 MΩ; 22 pF.
2.  Pulse generator: Rise time ≤ 8 ns; source impedance = 10 Ω.

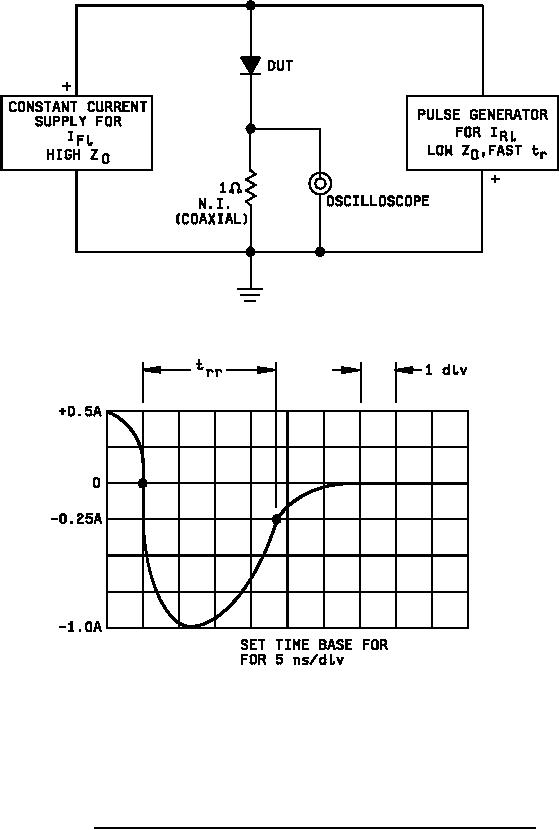

FIGURE 5. Low current reverse recovery time test circuit and characteristic waveform.
