MIL-PRF-19500/590K
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Notes
BD
.115
.137
2.92
3.48
4
BL
.130
.300
3.30
7.62
3
LD
.037
.042
0.94
1.07
3
LL
.900
1.300
22.86
33.02
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. The BL dimension shall include the entire body including slugs and sections of the lead over
which the diameter is uncontrolled. This uncontrolled area is defined as the zone between
the edge of the diode body and extending .050 inch (1.27 mm) onto the leads.
4. Dimension BD shall be measured at the largest diameter.
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

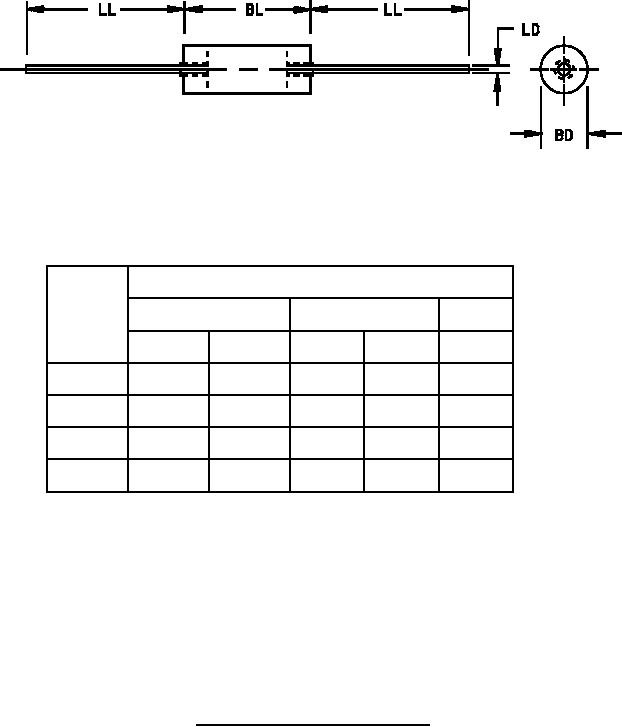

FIGURE 1. Physical dimensions (similar to DO-41).
3
