MIL-PRF-19500-624 Semiconductor Device, Transistor, Npn, Silicon, Power Darlington Type 2N7370, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN silicon, high power Darlington transistors. Four levels of product assurance are provided for each device type as specified in MIL–PRF–19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/624E
Maximum thermal impedance
TO­254AA package, TC = +25°C
10
1
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
10
1
Time (s)
Thermal impedance RθJC = 1.5°C/W maximum.

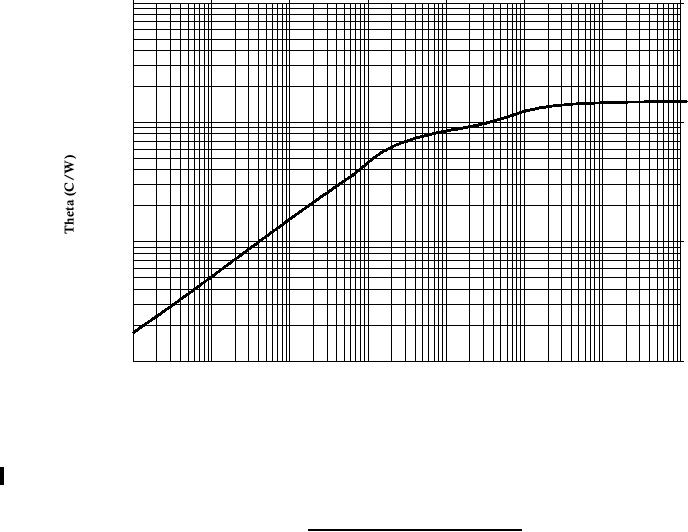

FIGURE 3. Transient thermal impedance graph.
