MIL-PRF-19500-624 Semiconductor Device, Transistor, Npn, Silicon, Power Darlington Type 2N7370, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN silicon, high power Darlington transistors. Four levels of product assurance are provided for each device type as specified in MIL–PRF–19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/624E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
BL
.535
.545
13.59
13.84
CH
.249
.260
6.32
6.60
LD
.035
.045
0.89
1.14
LL
.510
.570
12.95
14.48
LO
.150 BSC
3.81 BSC
LS
.150 BSC
3.81 BSC
MHD
.139
.149
3.53
3.78
MHO
.665
.685
16.89
17.40
TL
.790
.800
20.07
20.32
TT
.040
.050
1.02
1.27
TW
.535
.545
13.59
13.84
Term 1
Base
Term 2
Collector
Term 3
Emitter
NOTES:
1. Dimensions are in inches. Millimeters are given for general information only.
2. All terminals are isolated from case
3. Protrusion of ceramic eyelets included in dimension LL.
4. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

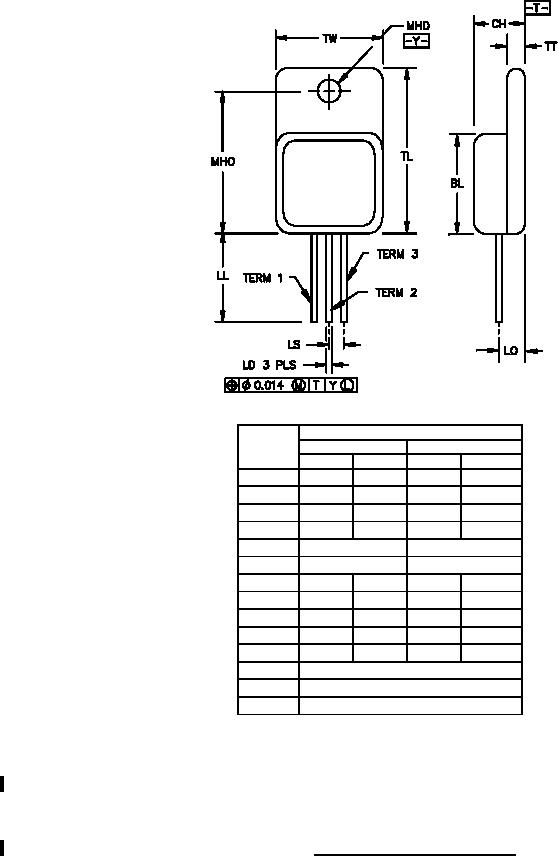

FIGURE 1. Physical dimensions (TO­254AA).
3
