MIL-PRF-19500/398K
E
B
Die size:
.016 x .020 inch (0.41 x 0.51 mm).
Die thickness:
.008 ±.0016 inch (0.20 ±0.041 mm).
Base pad:
.0028 x .0028 inch (0.07 x 0.07 mm).
Emitter pad:
.0028 x .0028 inch (0.07 x 0.07 mm).
Back metal:
Gold, 6,500 ±1,950 Å.
Top metal:
Aluminum, 17,500 ±2,500 Å.
Back side:
Collector.
SiO2, 7,500 ±1,500 Å.
Glassivation:

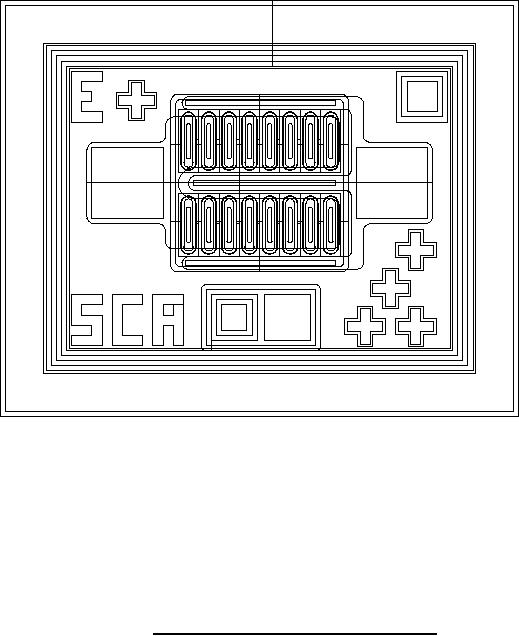

FIGURE 3. JANHC and JANKC (A-version) die dimensions.
5
