MIL-PRF-19500/478K
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
A
.130
.133
3.30
3.37
B
.114
.117
2.89
2.97
C
.009
.010
0.228
0.254
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for general information only.
3. The physical characteristics of the die are: Metallization {front (anode), back (cathode)}
consists of: Ag thickness = 3,000 Å minimum, NI thickness = 1,500 Å minimum, Cr thickness
= 800 Å minimum.
4. Requirements in accordance with MIL-PRF-19500 (appendix E) are performed in a DO-4 package (see
6.5).
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

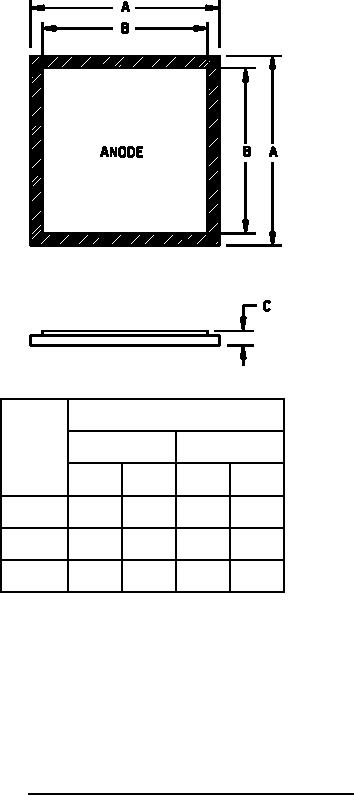

FIGURE 2. Physical dimensions JANC die dimensions (A-version).
3
