MIL-PRF-19500/478K
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
A
.130
.143
3.30
3.63
B
.114
.133
2.89
3.37
C
.009
.010
0.228
0.254
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for general information only.
3. The physical characteristics of the die are: Metallization {front (anode), back
(cathode)} consists of: Ag thickness = 3,000 Å minimum, NI thickness = 1,500 Å
minimum, Cr thickness = 800 Å minimum, optionally Ti thickness = 300 Å minimum.
4. Requirements in accordance with MIL-PRF-19500 (appendix H) are performed in a
DO-4 package (see 6.5).
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

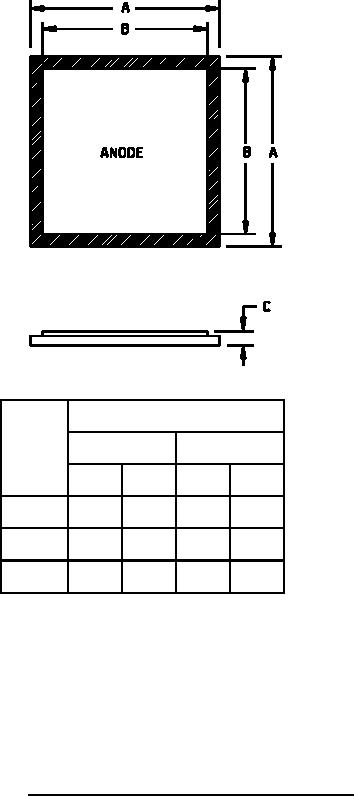

FIGURE 3. Physical dimensions JANC die dimensions (B-version).
