MIL-PRF-19500-586 Semiconductor Device, Diode, Silicon, Schottky Barrier, Types 1N5817-1, 1N5817Ur-1, 1N5819-1, 1N5819Ur-1, 1N6761-1, And 1N6761Ur-1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for silicon, Schottky barrier diodes. Four levels of product assurance are provided for each encapsulated device types as specified in MIL-PRF-19500. Two levels of product assurance are provided for unencapsulated devices \(die\) as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/586L
Dimensions
Symbol
Inches
Millimeters
Notes
Min
Max
Min
Max
BD
.080
.107
2.03
2.72
2
BL
.160
.205
4.06
5.21
2
LD
.028
.034
0.71
0.86
LL
1.000
25.40
L1
.050
1.27
3
NOTES:
1.  Dimensions are in inches. Millimeters are given for general information only.
2.  Package contour optional within cylinder of diameter BD and length BL. Slugs, if any, shall not be included
within this cylinder, but shall not be subject to the minimum limit of BD.
3.  Lead diameter not controlled in this zone to allow for flash, lead finish build-up, and minor irregularities
other than slugs.
4.  In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.
Types 1N5817­1, 1N5819­1 and 1N6761­1

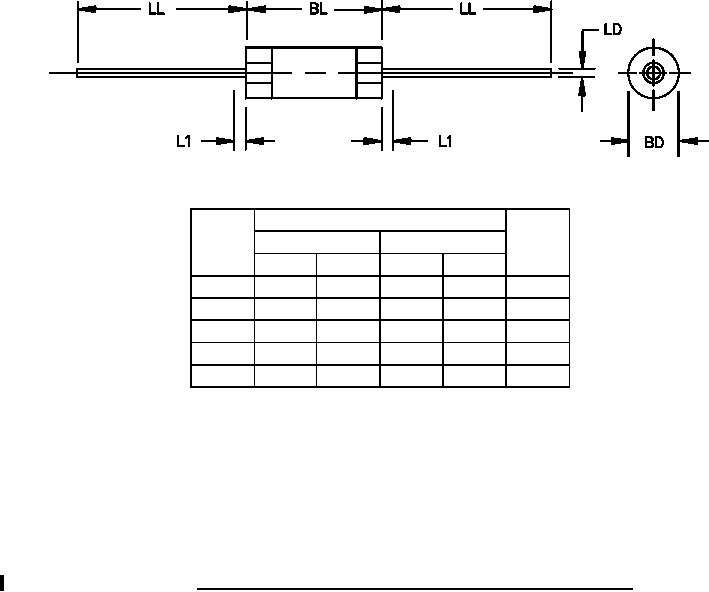

FIGURE 1. Physical dimensions for axial lead devices (DO­204AL, formerly DO­41).
3
