MIL-PRF-19500/587E
Dimensions
Symbol
Inches
Millimeters
Notes
Min
Max
Min
Max
BD
.060
.090
1.52
2.29
2
BL
.120
.200
3.05
5.08
LD
.018
.022
0.46
0.56
3
LL
1.000
1.500
25.40
38.10
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. The specified lead diameters apply in the zone between .050 inch (1.27 mm) from the
diode body to the end of the lead. Outside of this zone the lead diameter shall not
exceed the maximum of dimension BD.
4. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

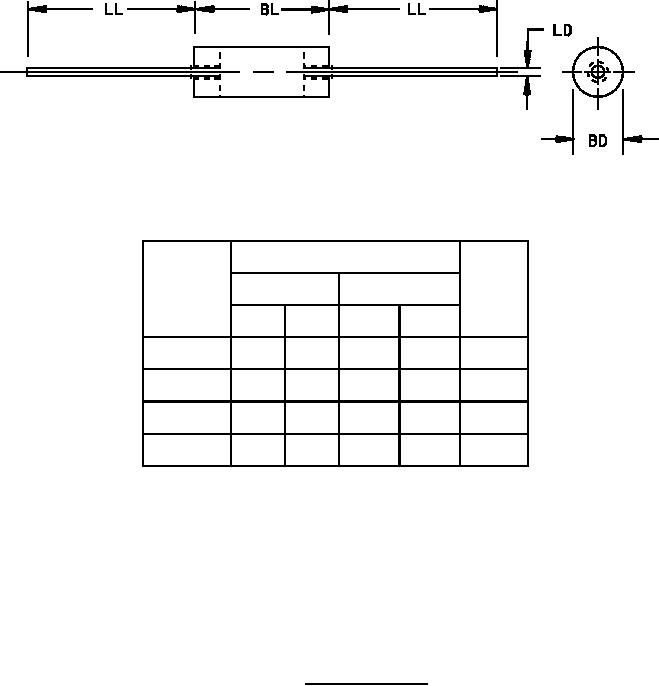

FIGURE 1. Physical dimensions.
