MIL-PRF-19500/587E
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
BD
.091
.103
2.31
2.62
BL
.168
.200
4.27
5.08
ECT
.019
.028
0.48
0.71
S
.003
0.08
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

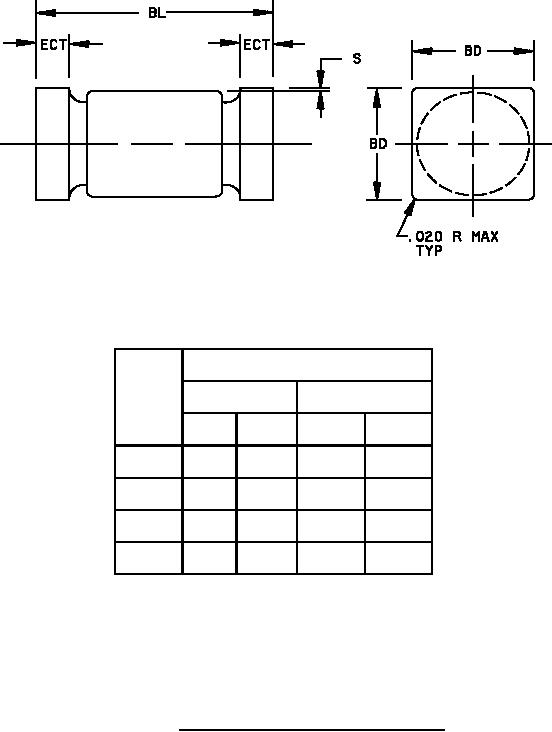

FIGURE 2. Physical dimensions of surface mount family.
4
