MIL-PRF-19500-597 Semiconductor Device, Transistors, Quad, Field Effect, N-Channel, Silicon, Type 2N7334, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for quad N-channel, enhancement-mode, MOSFET, power transistor with avalanche energy ratings \(EAS and EAR\) and maximum avalanche current \(IAR\). Four levels of product assurance are provided for each hermetic encapsulated device type as specified in MIL?√PRF?√19500. Two levels of product assurance are provided for each unencapsulated device type \(die\) as specified in MIL?√PRF?√19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL­PRF­19500/597G
NOTES:
1.

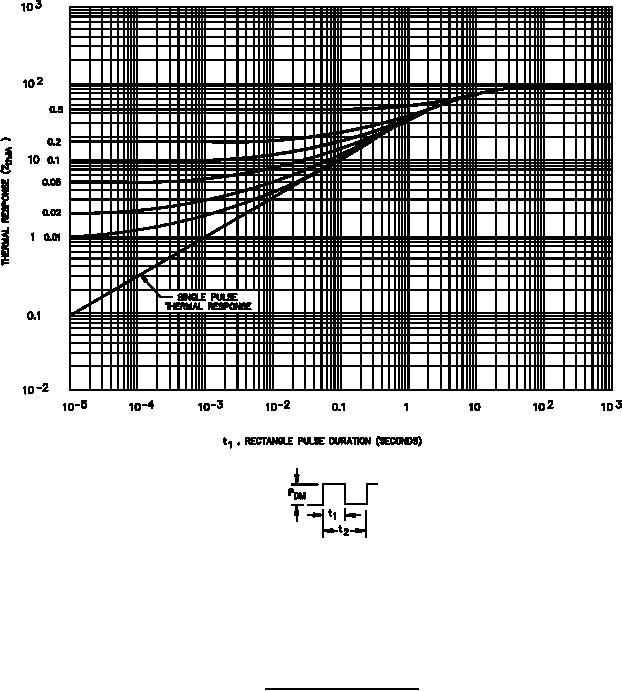

The curves are from bottom to top are: Single pulse, D = 0.01, D = 0.02, D = 0.05, D = 0.1, and D = 0.5.
Pulse duration magnitude = PDM.
2.
Duty factor D = t1 / t2.
3.
Peak TJ = PDM x ZthJA + TC.
4.
FIGURE 5. Thermal response curves.
16
