MIL-PRF-19500-276 Semiconductor Device, Thyristors \(Controlled Rectifiers\), Silicon, Types 2N2323, 2N2324, 2N2326, 2N2328, 2N2329, And S And U4 Versions, 2N2323A, 2N2324A, 2N2326A, 2N2328A, 2N2329A, And As And Au4 Versions, Jan, Jantx, And JantxvThis specification covers the performance requirements for PNPN, silicon, reverse-blocking-triode thyristors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/276H
LW1
BW
CH
1
U4
U4
LL1
BL
Q1 (2X)
LW2
Q2
(2X)
2
3
LL2 (2X)
LS2
LH
Ls1
(3X)
Symbol
Dimensions (U4)
Inches
Millimeters
Min
Max
Min
Max
BL
.215
.225
5.46
5.71
BW
.145
.155
3.68
3.94
CH
.049
.075
1.24
1.90
LH
.005
0.127
LW1
.135
.145
3.43
3.68
LW2
.047
.057
1.19
1.45
LL1
.115
.125
2.92
3.17
LL2
.045
.055
1.14
1.40
LS1
.070
.095
1.78
2.41
LS2
.038
.048
0.97
1.22
Q1
.045
.070
1.14
1.78
Q2
.025
.035
0.64
0.89
Terminal
1
Anode
2
Gate
3
Cathode
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

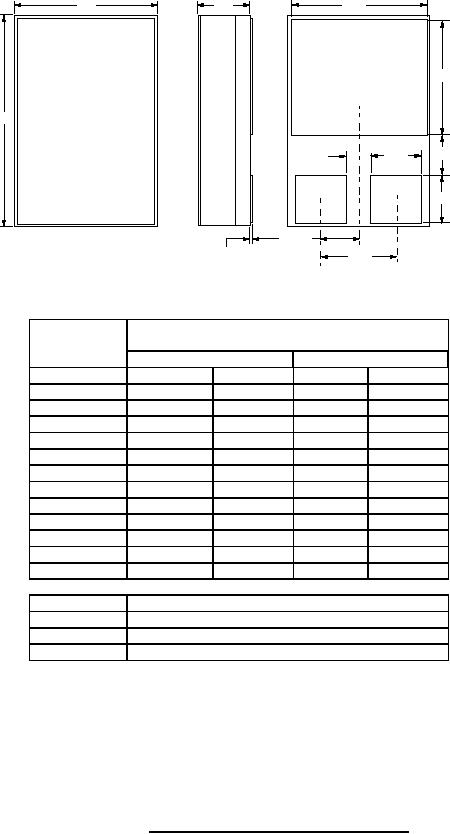

FIGURE 2. Physical dimensions and configuration (U4).
