MIL-PRF-19500-444 Semiconductor Device, Diode, Silicon, Switching, Schottky, Types 1N5711-1, 1N5711Ur-1, 1N5711Ub, 1N5711Ubca, 1N5711Ubd, 1N5711Ubcc, 1N5712-1, 1N5712Ur-1, 1N5712Ub, 1N5712Ubca, 1N5712Ubd, 1N5712Ubcc, 1N6857-1, 1N6857Ur-1, 1N6858-1, And 1N6858Ur-1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for Schottky barrier diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/444N

DO-35

Dimensions

Inches

Millimeters

Notes

Symbol

Min

Max

Min

Max

.068

.076

1.73

1.93

2, 3

.125

.170

3.18

4.32

.014

.022

0.36

0.56

1.000 1.500 25.40 38.10

NOTES:

1. Dimensions are in inches. Millimeters are given for general information only.

2. Dimensions BL and LD include all components of the diode periphery except the sections of the leads over

which the diameter is controlled.

3. Dimension BD shall be measured at the largest diameter.

4. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

1N5711-1, 1N5712-1, 1N6857-1, and 1N6858-1

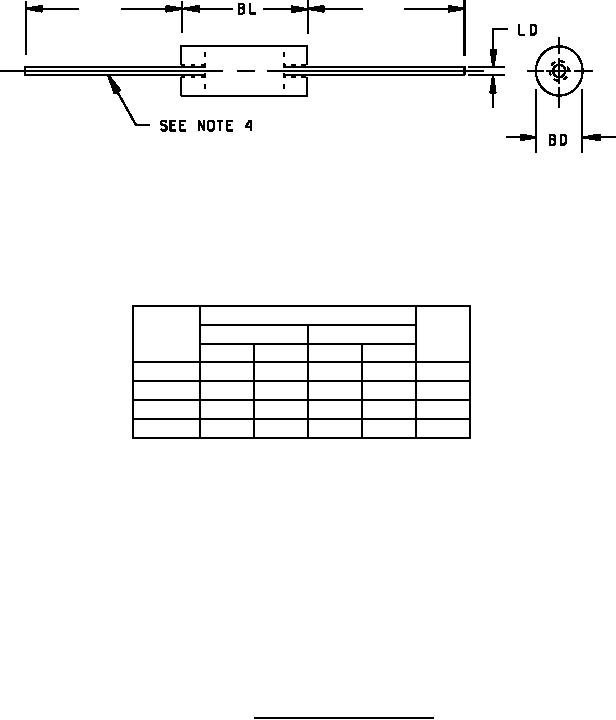

FIGURE 1. Physical dimensions, (DO-35).
