MIL�PRF�19500/472F

NOTES:

1. The input waveform is supplied by a pulse generator with the following characteristics:

tr ≤ 15 ns, tf ≤ 15 ns, ZOUT = 50 ohms, PW = 10 �s, duty cycle ≤ 2 percent.

2. Output waveforms are monitored on an oscilloscope with the following characteristics:

tr ≤ 15 ns, ZIN ≥ 10 MΩ, CIN ≤ 11.5 pf.

3. Resistors shall be non-inductive types.

4. The dc power supplies may require additional by-passing in order to minimize ringing.

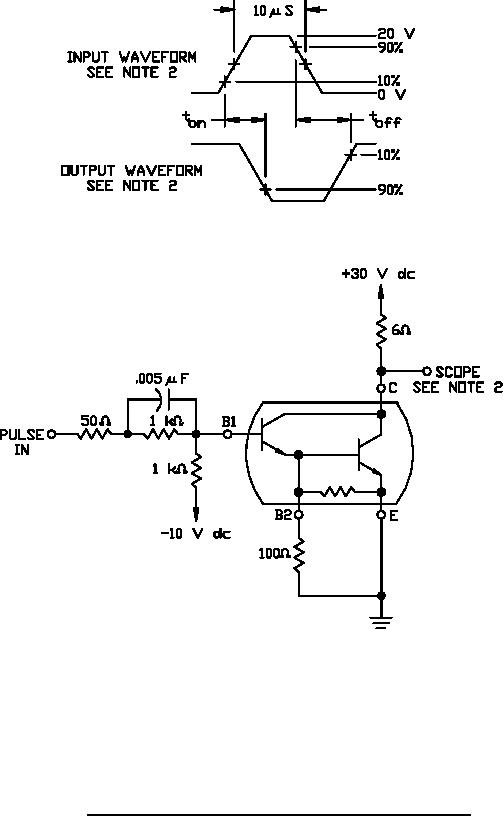

FIGURE 4. Pulse response test circuit for device types 2N6350 and 2N6352.
