MIL-PRF-19500-472 Semiconductor Device, Transistor, Npn, Silicon, Power Darlington, Types 2N6350, 2N6351, 2N6352, And 2N6353, Jan, Jantx, Jantxv, Janhc, And JankcThis specification covers the performance requirements for NPN silicon power Darlington, transistors. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. One level of product assurance are provided for each unencapsulated device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL�PRF�19500/472F

NOTES:

1. The input waveform is supplied by a pulse generator with the following characteristics:

tf < 15 ns, ZOUT = 50 Ω, PW = 10 �s, duty cycle < 2 percent.

2. Output waveforms are monitored on an oscilloscope with the following characteristics:

tr < 15 ns, ZIN > 10 MΩ, Cin < 11.5 pf.

3. Resistors shall be non-inductive types.

4. The dc power supplies may require additional by-passing in order to minimize ringing.

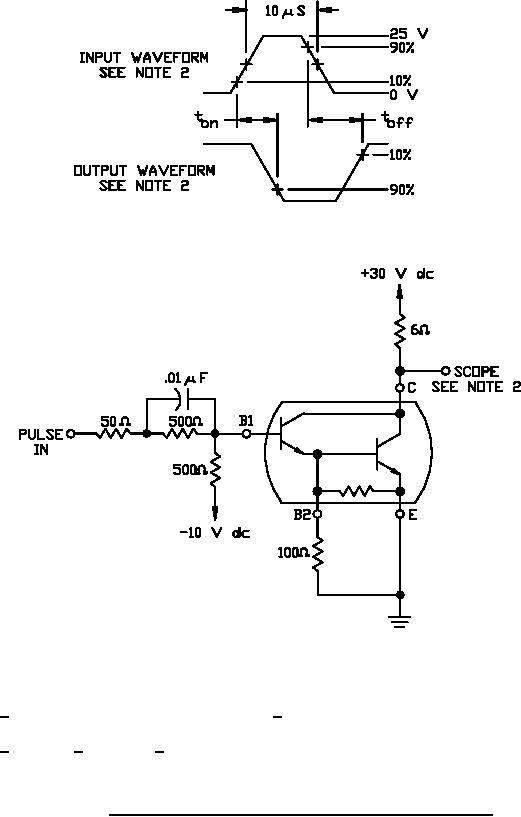

FIGURE 5. Pulse response test circuit for device types 2N6351 and 2N6353.
