MIL-PRF-19500/503H

Maximum lead temperature in �C (TL at point L from body (see table below).

For maximum operating junction temperature with equal two-lead conditions.

RθJL

�C/W

Distance from body

.000 (0.00 mm)

8.5

.125 (3.18 mm)

14.0

.250 (6.35 mm)

19.5

.375 (9.52 mm)

25.0

.500 (12.7 mm)

30.0

.750 (19.1 mm)

40.0

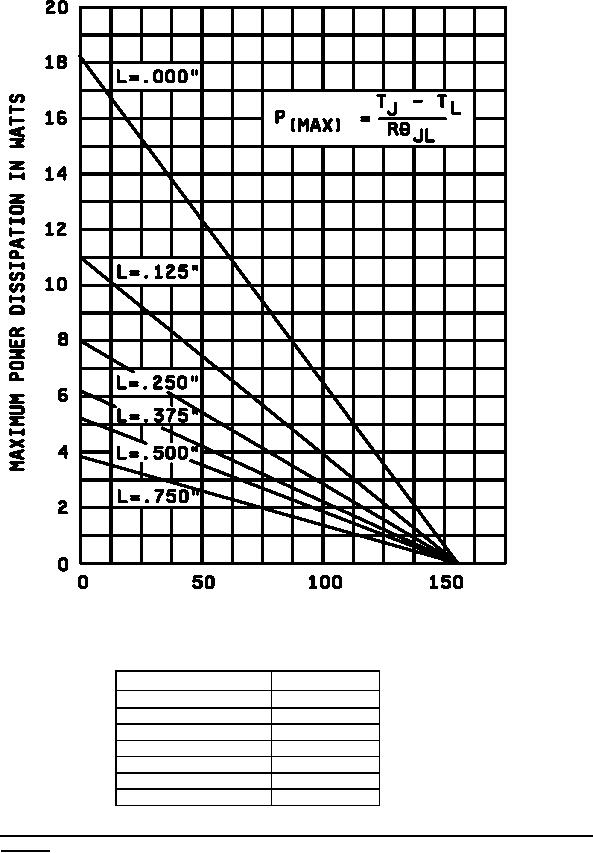

FIGURE 4. Power derating curves maximum power in watts versus lead temperature for 1N6076, 1N6077, and

1N6078.
