MIL-PRF-19500/503H

NOTES:

1. Rise time ≤ 350 ps, input impedance 50 ohms, circuit impedance 50 ohms coaxial.

2. Rise time ≤ 250 ps, source impedance = 8 ohms maximum, PRF ≈฀ 0 .5 kHz , P W ≥ 40 ns.

3. Recovery conditions: 0.5 A forward current to 1.0 A reverse current. Recovery time measured

when rectifier recovers to 0.25 A.

4. Constructed from 10 through 10 ohm resistors 1/8 watt.

5. Constructed from 10 through 100 ohm resistors 1/8 watt.

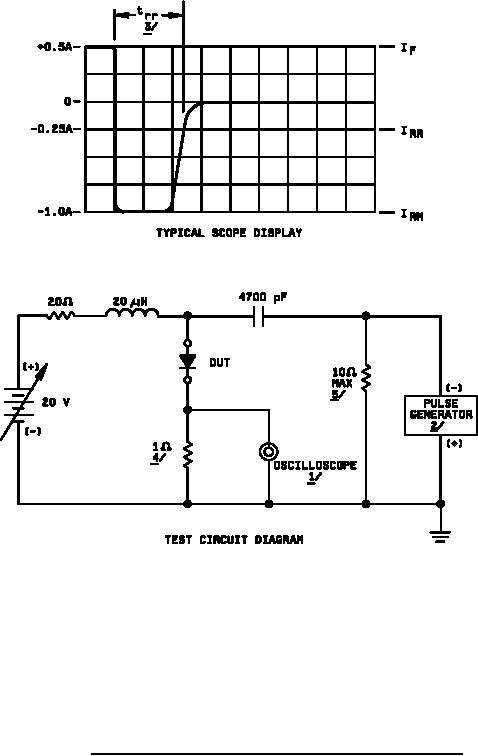

FIGURE 6. Reverse recovery time test circuit and characteristic waveform.
