MIL-PRF-19500/182H

Die size:

.030 x .030 inch (0.76 mm x 0.76 mm).

Die thickness:

.008 �.0016 inch (0.20 mm �0.041 mm).

Base pad

.004 x .010 inch (0.10 mm x 0.254 mm).

Emitter pad:

.0023 x .007 inch (0.058 mm x 0.18 mm).

Back metal:

Gold, 6.5 k� �1.95 k�.

Top metal:

Aluminum, 12 k�. Minimum; 14.5 k�. nominal.

Back side:

Collector.

SiO2, 7.5 k� �1.5 k�.

Glassivation:

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

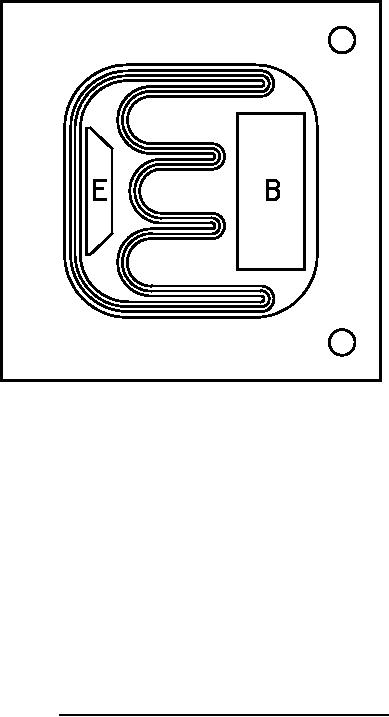

FIGURE 4. JANHCA2N720A and JANKCA2N720A die dimensions.
